3 Car Garage Plans

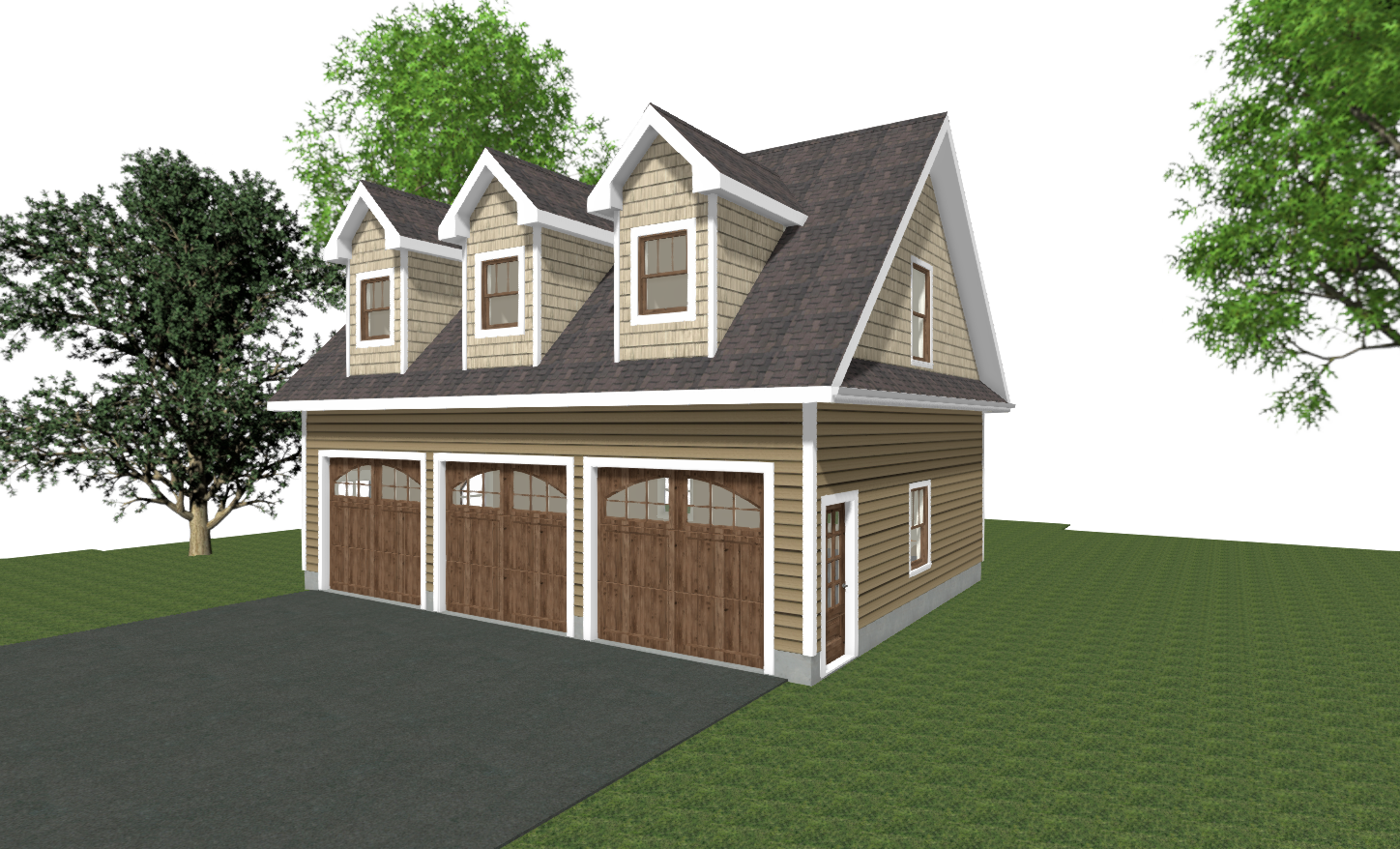

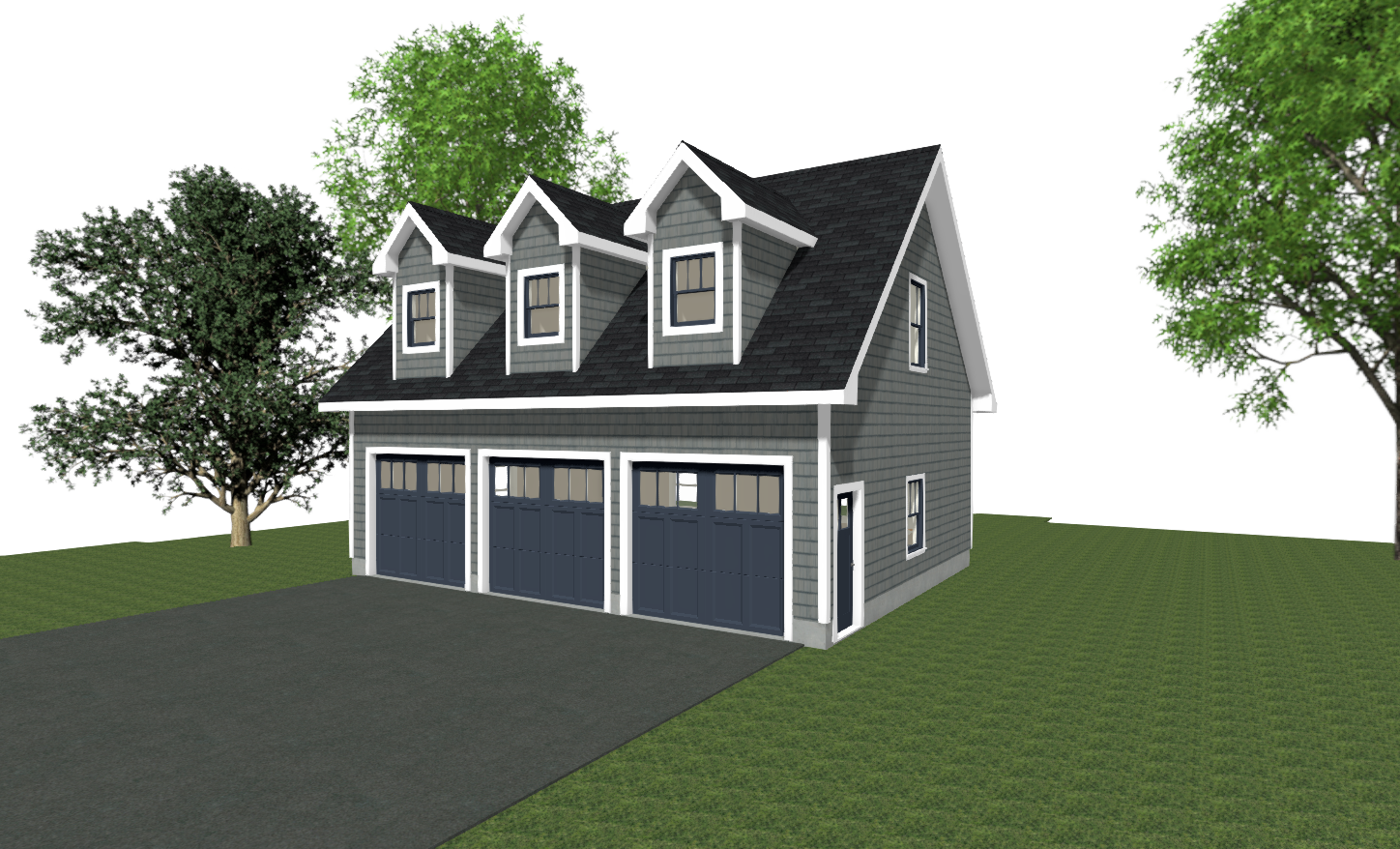

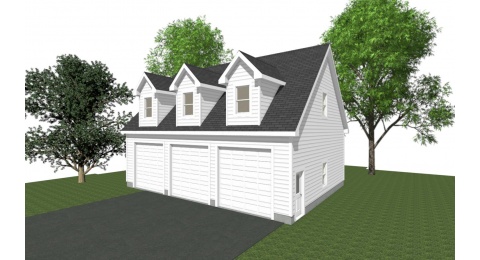

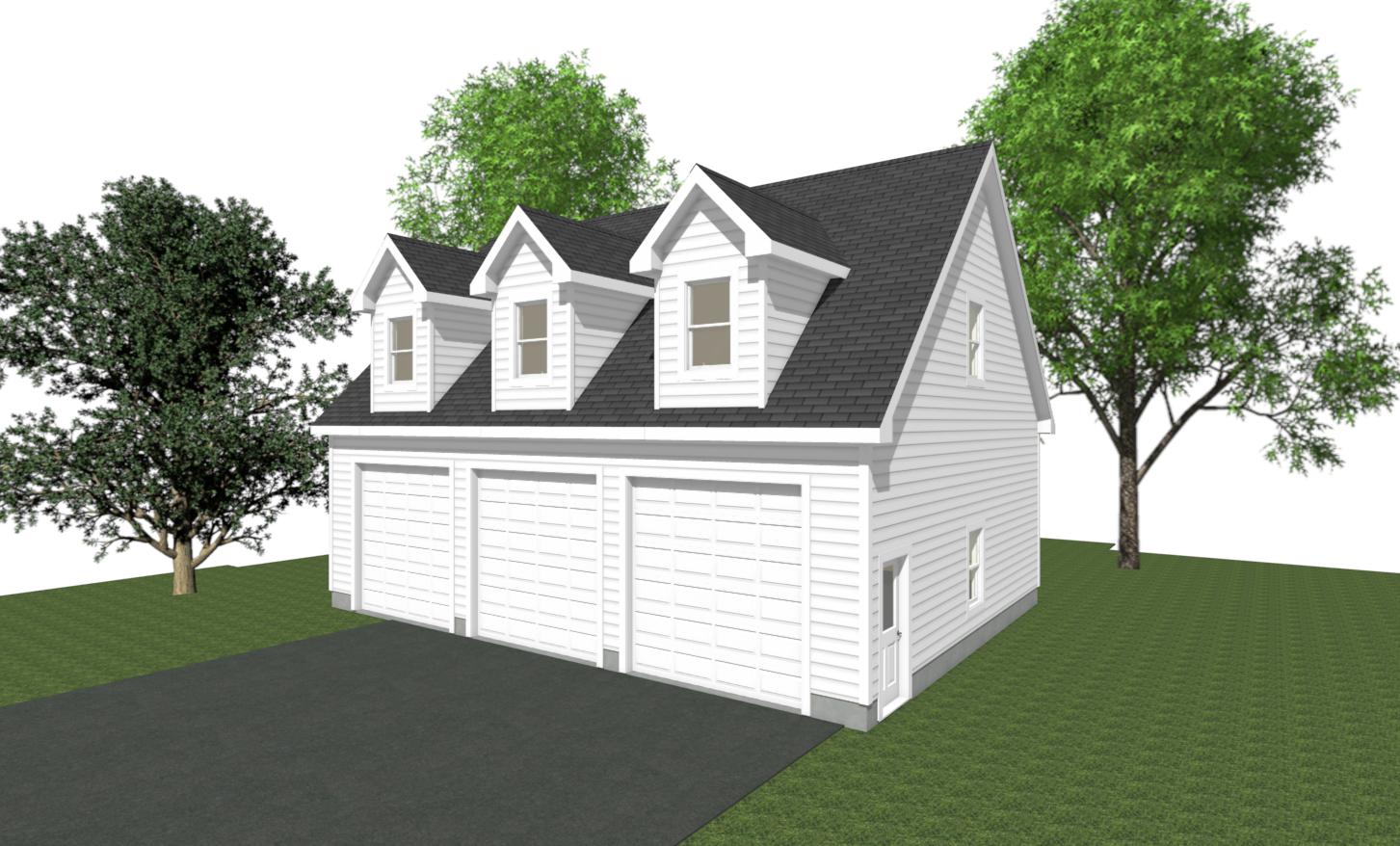

The Black Ceder is a standard 3 bay garage design. A high pitch 10/12 or 12/12 allows the weather to shed easily.  Intended for parking only with minimal storage capacity available in the remaining lower level space. A stair access to the upper level is perfect for storage, an office, or a studio. "Dog House" style dormers are presented, centered on the front face. The Eave Face is presented above the garage doors in this design. The 3 Bay Garage Plans include a material list and a material calculations guide to assist with Estimation.

AS DRAWN :  - - NOTE: The Site is under continued growth and not all Wall Heights are Available for every size.

If you do not find exactly what you are looking for PLEASE inquire, as GET MY GARAGE can provide a custom request typically within 72 hours.   For CUSTOM DESIGN Click Here

• DESIGNATION = 3 Bay Garage Plans
• CODE = Consult Local Code Enforcement
• CODE = IBC/ IRC 2015 Minimum
• FOUNDATION = Frost Wall with 12" Stem
• FOUNDATION = Manual Designation Form Available
• WALL HEIGHT = 8'-0", 10'-0", 12'-0" and 14'-0"
• WALL FRAME = 2x6 KD - Open Stud
• SHEATHING = 1/2" Min - Wall
• ROOF = Attic Truss System - Open Ceiling
• ROOF PITCH = 10/12 or 12/12
• SHEATHING = 5/8" Min - Roof
• SHEATHING = 3/4" Min - Floor
• SIDING = Vinyl Siding
• ROOFING = Architectural Shingles
• WINDOWS = Double Hung
• DOORS = Insulated Entry
• GARAGE DOORS = Insulated
• STORAGE/ STUDIO ABOVE = Yes
• ACCESS = Stairs
• DORMER = 3 "Dog House"  Front Only
• OPTIONS = Consult your Local Supplier
